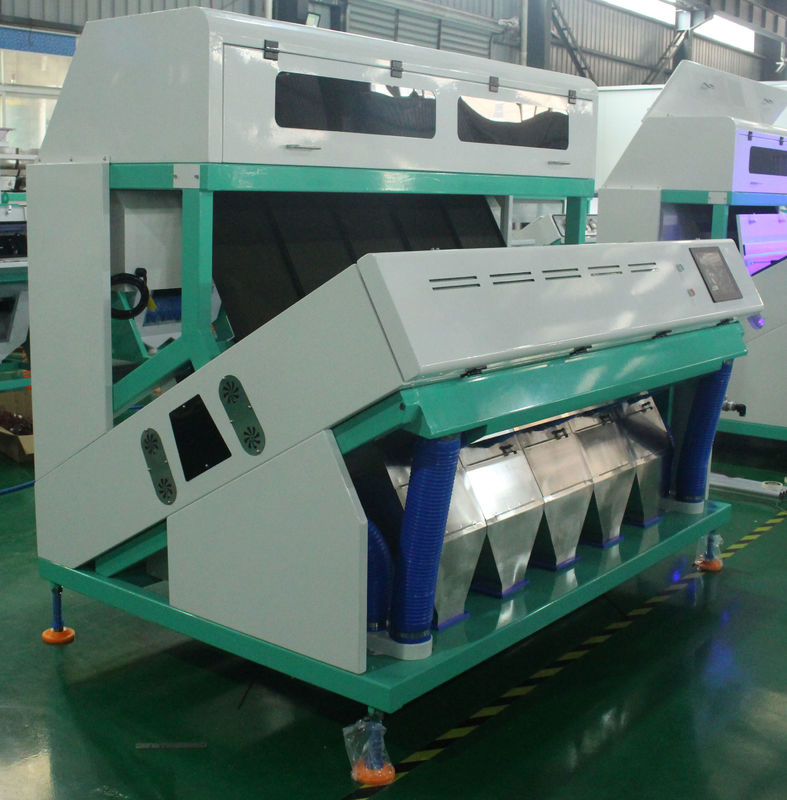

6T/H High Resolution 5400 Pixel RGB Wheat Lentil Color Sorter
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | Nage |
| Certification: | CE SGS |
| Model Number: | 6XM-320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | >=1 Sets |
|---|---|
| Packaging Details: | Our products use professional wooden cases within PE plastical bag.Package size will depend on each model size. |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Material: | Wheat | Resolution: | 5400 Pixel |
|---|---|---|---|
| Condition: | New | Production Capacity: | 6T/H |
| Voltage: | 220v | Power(W): | 4.0kw |
| Weight: | 1100kg | Dimension(L*W*H): | 2400*1536*1690 |
| Warranty: | 1 Year | Key Selling Points: | High Accuracy |
| Name: | High Resolution 5400 Pixel RGB Wheat Lentil Color Sorter | Function: | Sorting Wheat |
| Model No.: | 6XM-320 | Channels: | 5 |
| Type Of Sensor: | Japan Toshiba CCD Sensor | Accuary: | More Than 99% |
| Carryover Rate(BadGood): | 10:1 | ||
| High Light: | 5400 Pixel lentil color sorter,6T/H lentil color sorter,6T/H RGB color sorter |
||
Product Description
High Resolution 5400 Pixel RGB Wheat Lentil Color Sorter
Lentil Color Sorter Features:
* Optical sorting technology with High Resolution 5400 Pixel CCD Camera, High Reliability And Long Life LED Light Source;
* Efficient And Stable Software System, Intelligent Algorism, User-Friendly Interface;
* Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
* SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
* Lentils Colour Sorter With Expert Sorting Solution Realizes One Key Debugging
* China GroTech Sorter With Remote Debugging, Diagnosing, And Maintenance. Four Core Technologies To Ensure Your Operations
| model | 6SXM-640 | 6SXM-448 | 6SXM-512 | 6SXM-320 | 6SXM-384 |
| chutes, No. | 640 | 448 | 512 | 320 | 384 |
| product output | 8.0-18 | 5.0-12 | 6.0-14 | 3.5-8.0 | 4.0-10.0 |
| sorting accuracy | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
| optimized carryover | 8:1 | 8:1 | 8:1 | 8:1 | 8:1 |
| weight(kg) | 1650 | 1410 | 1590 | 1050 | 1230 |
| minium identification | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| power (kW) | 5.5 | 4 | 4.5 | 2.5 | 3.5 |
| power supply (v/Hz) | AC220/50 | AC220/50 | AC220/50 | AC220/50 | AC220/50 |
| Dimension (l*w*h)mm | 3846*1587*1968 | 3060*1536*1690 | 3367*1536*1690 | 2400*1536*1690 | 2715*1536*1690 |
Lentil Color Sorter Products Description
1. The vibration is even and the frequency is stable, so that the falling of the material can form a waterfall flow, which will not overlap the material and reduce the color selection error.
2. Customized rust proof aluminum alloy materials, produce strictly according to the standard of international food safety, non toxic and harmless.
3. The newly designed LED light source has the advantages of high brightness, long life and good heat dissipation, which can meet the color selection of various materials and colors.
4. 5400 pixels high-precision professional lens ensures image clarity and accuracy. The highest resolution is up to 0.02mm2, which can accurately identify small defects and spots in materials
5. powerful image processing algorithm, combined with color selection and shape selection algorithm, can accurately identify material color and shape
6. High quality solenoid valve with high frequency and long service life. At the same time of ensuring the output, reducing the belt to output ratio.
7. The operative system interface is easy to use. Multiple languages to choose. One-key intelligent automatic identification and adjust to meet the requirements of different batches and different impurity rate of the raw material.
8. Special anodizing process, large output and even blanking
How does the color sorter machine work?
The standard procedure of sorter’s operation can be described as follows:
Input product is loaded in the sorter via an in-feed hopper. With the help of vibration, the material flows along the chute to the distribution channels. Then the product gets into the inspection zone, where it is checked by the high-tech sensors or CCD-cameras. Cameras, having received the reflected light from the selected material, generate an electric signals for the computer operating system. Depending on the signals received from the optical system, the computer control system sends the command to open the pneumatic valve(the ejector)which blows away grains different in color. The good product directly flows into the goods product hopper. The reject is blown off to the discharging hopper.
| Packaging & Delivery | ||||
| Packaging Details | Our products use professional wooden cases within PE plastical bag.Package size will depend on each model size. | |||
| Port | shanghai | |||
| Lead Time : | Quantity(Sets) | 1-1 | 2-2 | >2 |
| Est. Time(days) | 7 | |||
| 10 | ||||
Packaging Details:Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size
Before Sale
ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something
unexpected, excluding delicate fittings).
